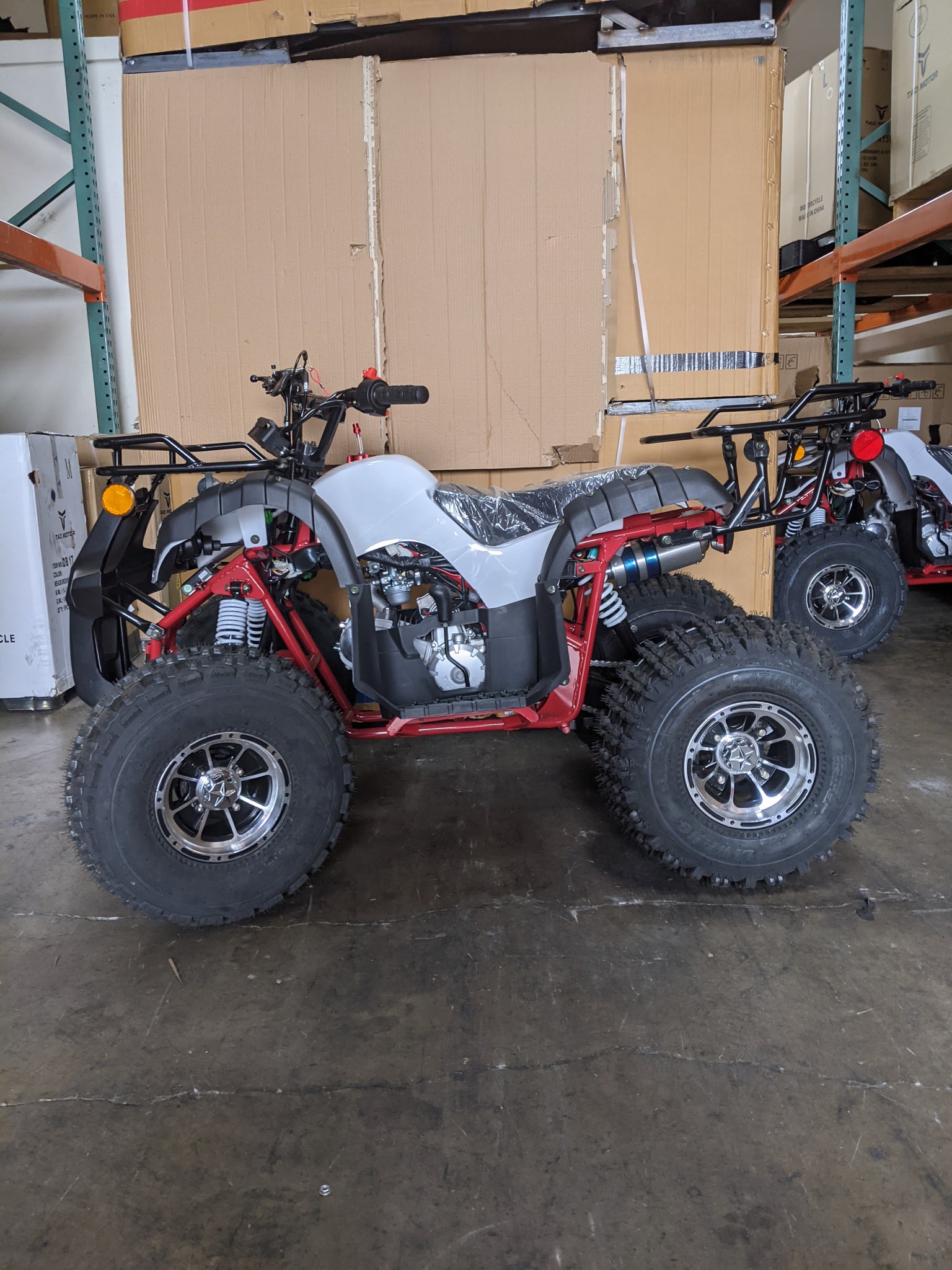

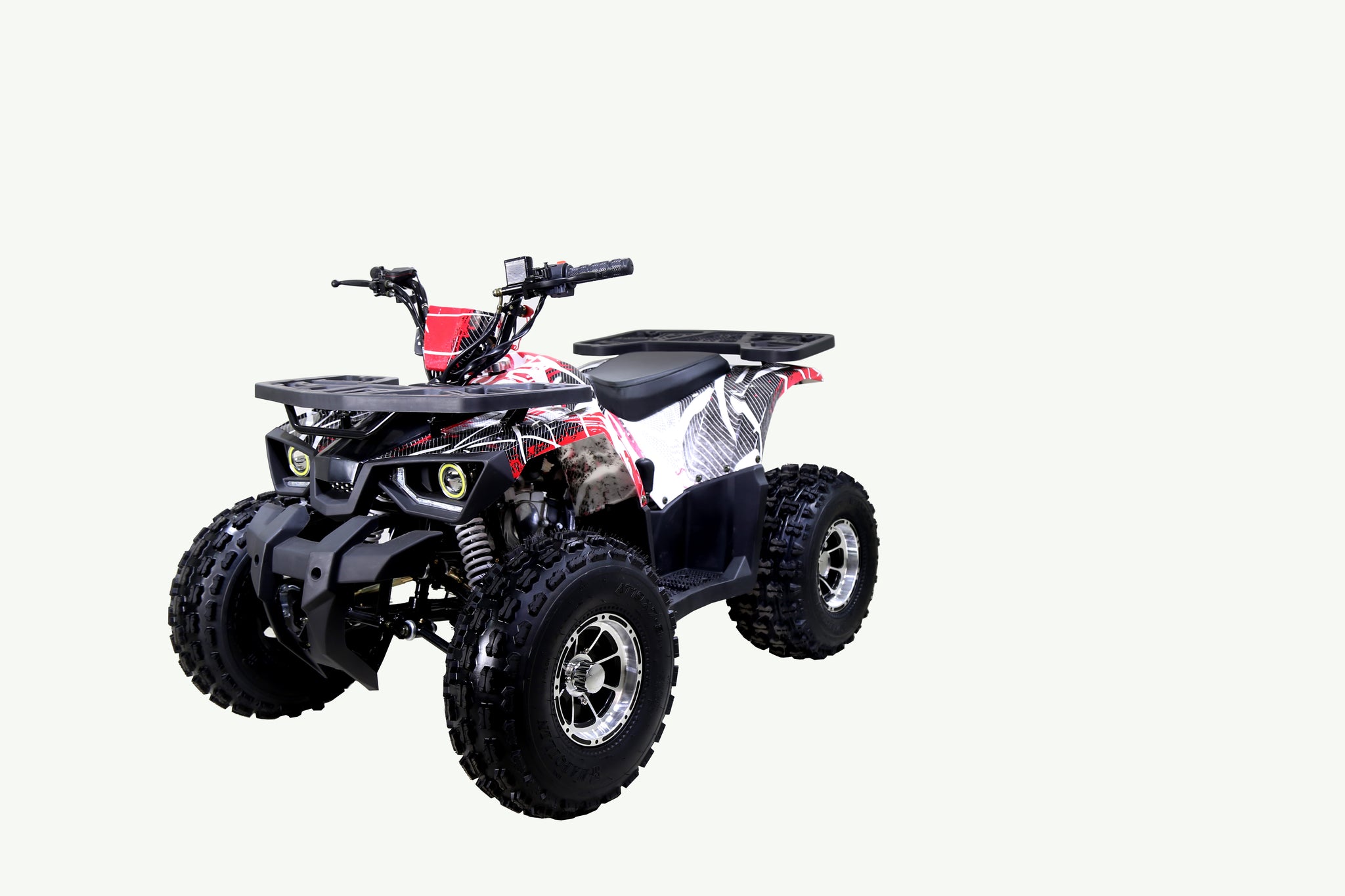

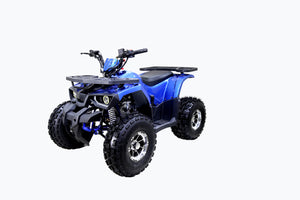

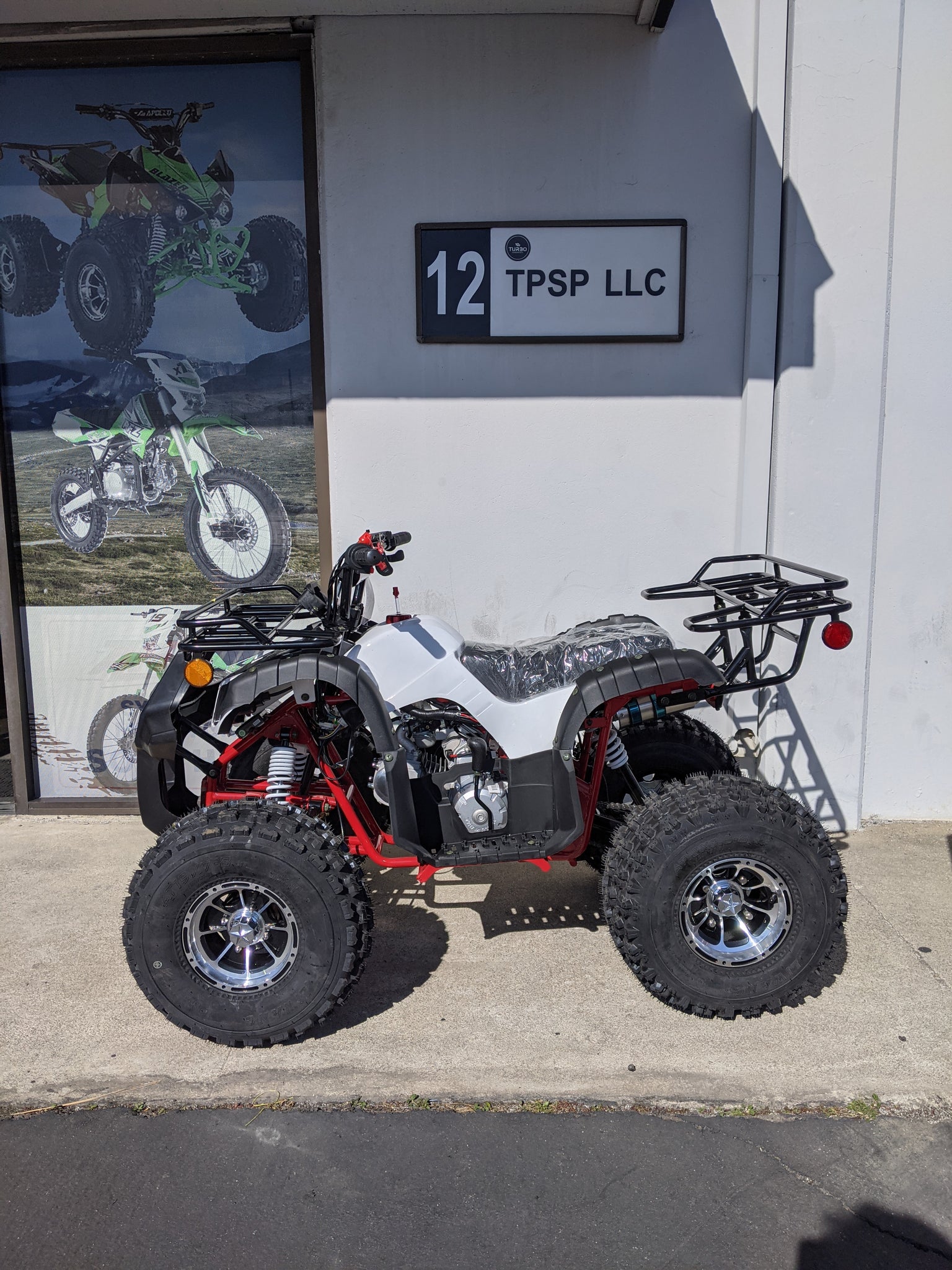

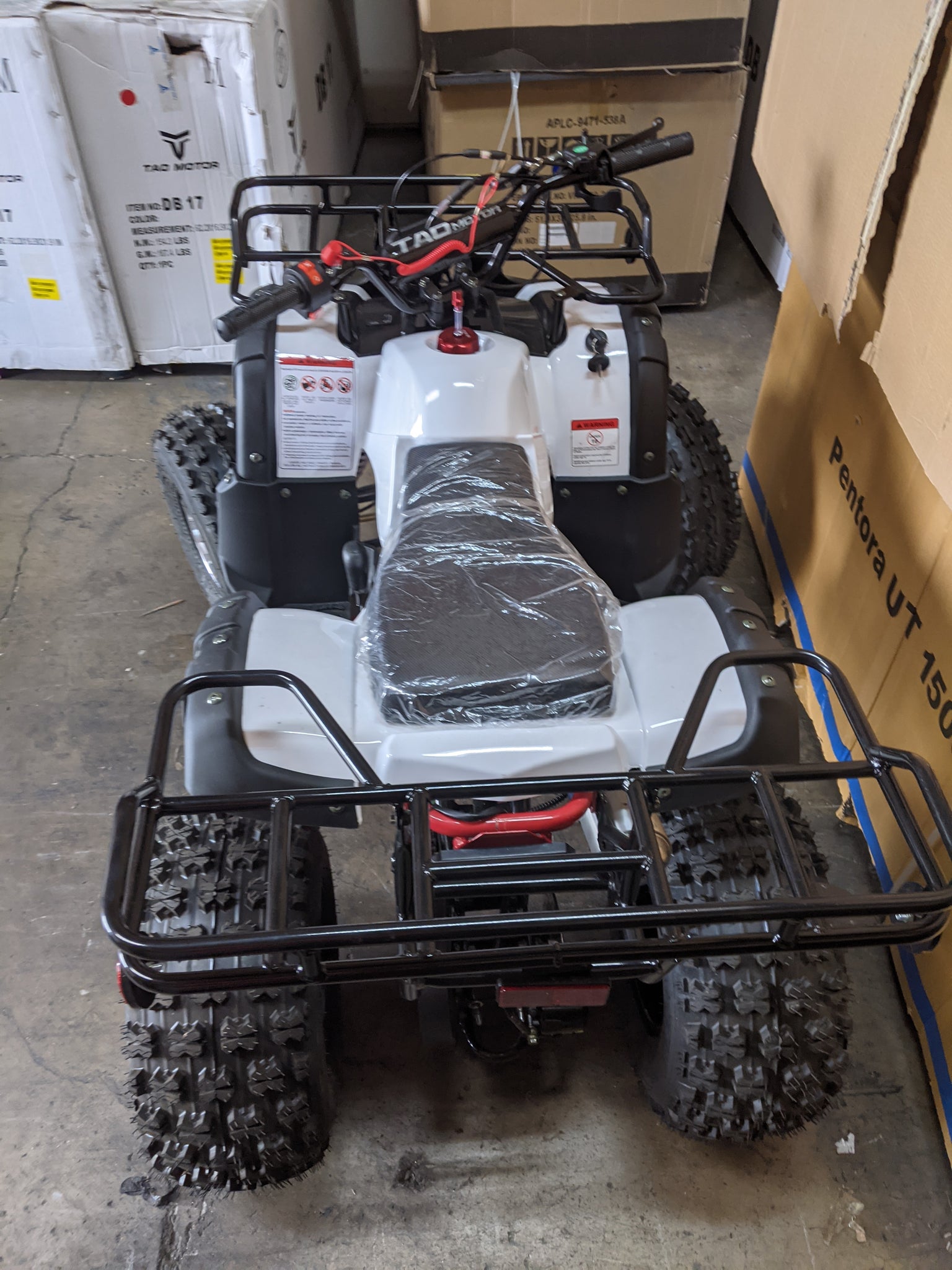

RAPTOR 125cc Automatic ATV
Affordable FUN Raptor 125cc Youth ATVs have large Alloy rim and knobby off road tubeless tires . The Raptor 125 Youth Four wheelers are completely automatic with Reverse Gear and easy to operate. Each Raptor 125cc ATV is equipped with all the standard equipment that you would find on a full size four wheeler for example, Digital Speedometer, high beam, low beam headlight, 19" large tubeless rubber off road tires, dual front adjustable shocks, dual front drum brakes, rear hydraulic disc brake, electric start, parking brake, safety tether, the Raptor Youth Utility Quad's are also equipped with a mechanical governor that can slow the ATV's top speed down to as low as 5 MPH allowing children to be able to learn how to operate the quad at their own safe pace, as the ATV rider learns to operate the little quad, the governor will allow you to increase the ATV's speed and horse power, all the way to the top speed of 34 MPH.
90-DAY STANDARD TAOTAO FACTORY WARRANTY
Download RAPTOR features list.
Specifications
RAPTOR |
|
Engine: |
|
Engine Type: | 120cc,Air cooled, 4-stroke, 1-cylinder,automatic with reverse |
Start Type: | Electric start |
Transmission: | Chain Drive |
Engine Gear: | D-N-R |
Shift Gear: | Hand |
Max Torque: | 8.0N.m/6000 r/min |
Wheelbase(inch): | 38 |
Ignition: | CDI |
Fuel Capacity(L): | 2.2 L |
Chassis: |
|
Front Hand Brake: | Drum |
Rear Hand Brake: | Hydraulic Disc |
Tire Front: | 19 x 7 - 8 (with alloy rims) |
Tire Rear: | 18 x 9.5 - 8 (with alloy rims) |
Suspension Front(inch): | 12.4 |
Suspension Rear(inch): | 12.4 |
Speed Limiter(Yes/No): | Yes |
Engine kill switch(Yes/No): | Yes |
LED Headlights(Yes/No): | Yes |
Running hour meter | Yes |
Dimension: |
|
Battery: | 12V/5Ah (Included) |
G.W.: | 303 LBS |
N.W.: | 264 LBS |
Max Loading: | 132 LBS |
Carton Size: | 52 x 30 x 25 Inches |
Seat Height: | 26 Inches |
Ground Clearance: | 4 Inches |
