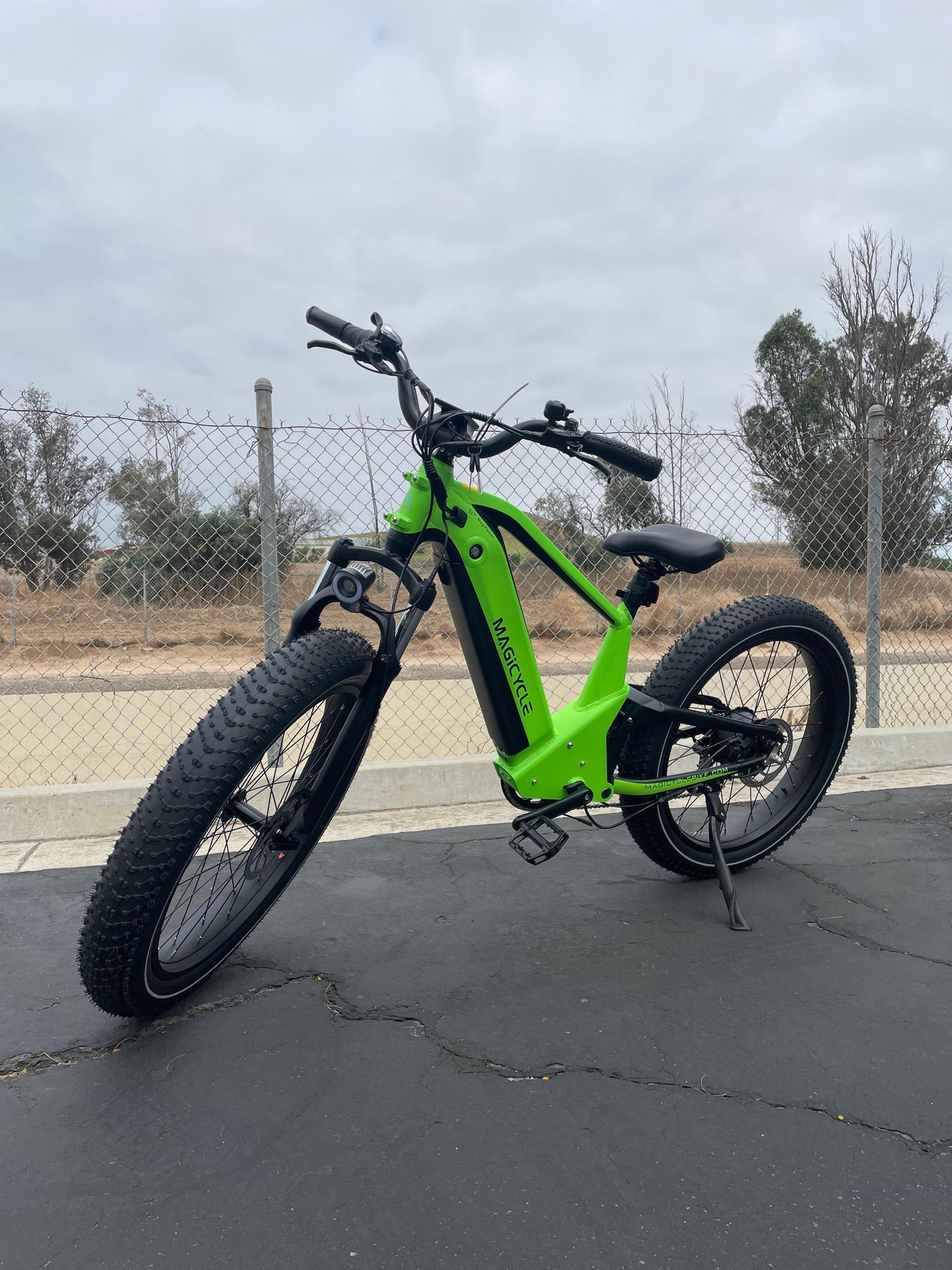

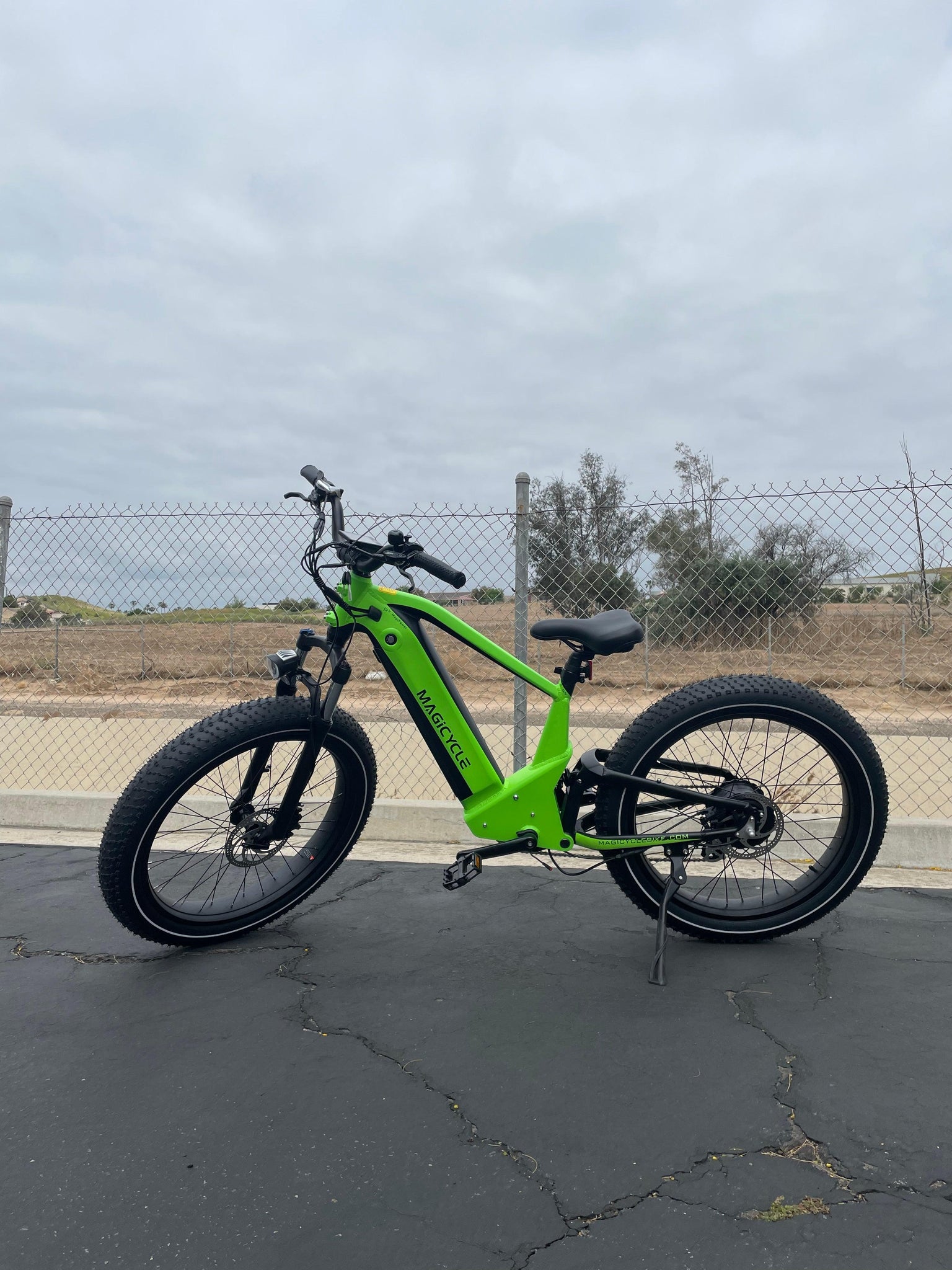

E-BIKE Magicycle Deer SUV Mountain Bike 52V 20AMP
Ebike SUV Built for Adventures
Inspired by SUV, DEER is the integration of 3 bike modes - step-thru commuter bike, trekking bikes, and most importantly, full-suspension electric mountain bike, providing features of convenience, firmness, large carrying capacity, and full-suspension system. In the field of full suspension bikes, DEER, the first ebike SUV from Magi cycle, is in a leading position in terms of comfort, handling, power, and range.
Full Suspension E-bike System
In addition to the usual front suspension fork, Deer has a rear shock absorber. That makes this new full-suspension E-bike SUV very comfortable to ride anywhere, and capable of handling the difficult technical trails, creating a smoother ride with better traction and handling, avoid fatiguing the rider quickly.


Effective Shock Absorption
The full-suspension system of Magicycle Deer makes it stand out in the field of off-road riding. On tough and bumpy roads, Magicycle Deer will show you really comfortable e-bike rides by absorbing shocks effectively. Stable and steady, these are how it feels while riding over any bumps on Magicycle Deer.
Dominate Any Mountain Bike Trail
Rugged off-road terrain demands a rugged e-bike, that's why Magicycle is introducing a new full-suspension E-bike SUV - Deer. The maximum shock absorption from the full suspension system is what makes DEER like a real electric mountain bike for off-road riding.


Large-Capacity 52V Ebike Battery
Magicycle has applied the 21700 cell battery technology. This is to produce a longer-lasting battery with better performance and quality. The 52V voltage improves the battery efficiency greatly, leading to less battery loss.
The battery is integrated with the downtube and removable. It can be removed without tools other than the key, which could be the most convenient way for battery charging.
An Ebike SUV Ready for Long-Range Rides
The battery on Deer is specifically designed to let you take long-range adventures, tough technical trails, scenic rides, or daily commutes with confidence. These long range rides will always come with comfort and relaxation with the full-suspension system.

Quality is in the details.

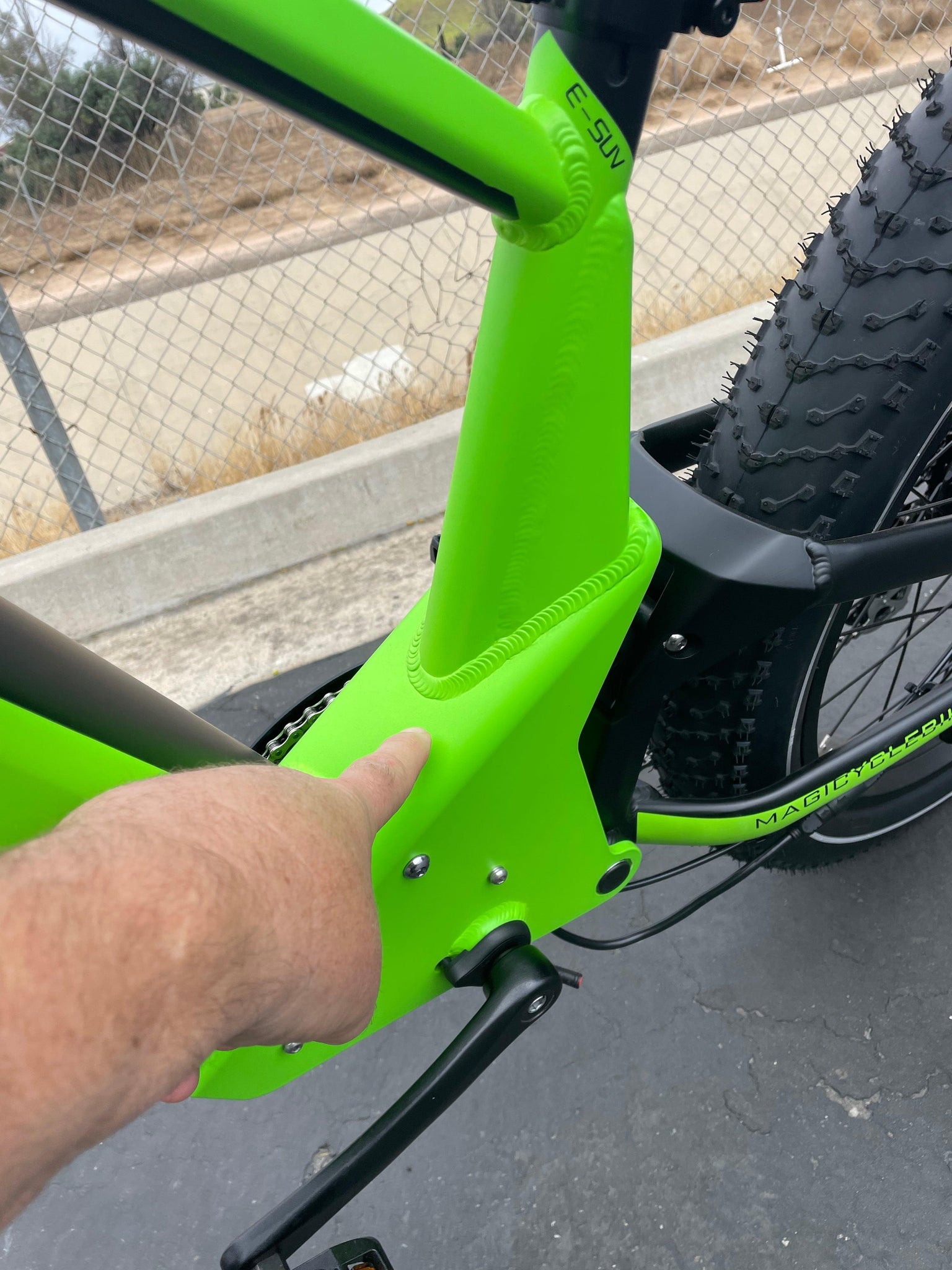

Double-Layer Multi-Cavity Design

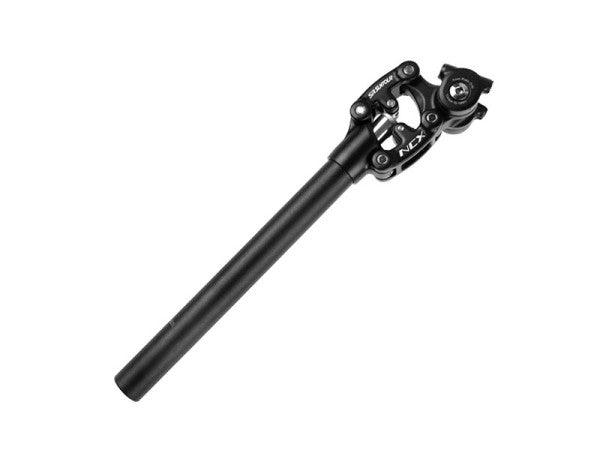

Triangle Seat post Structure

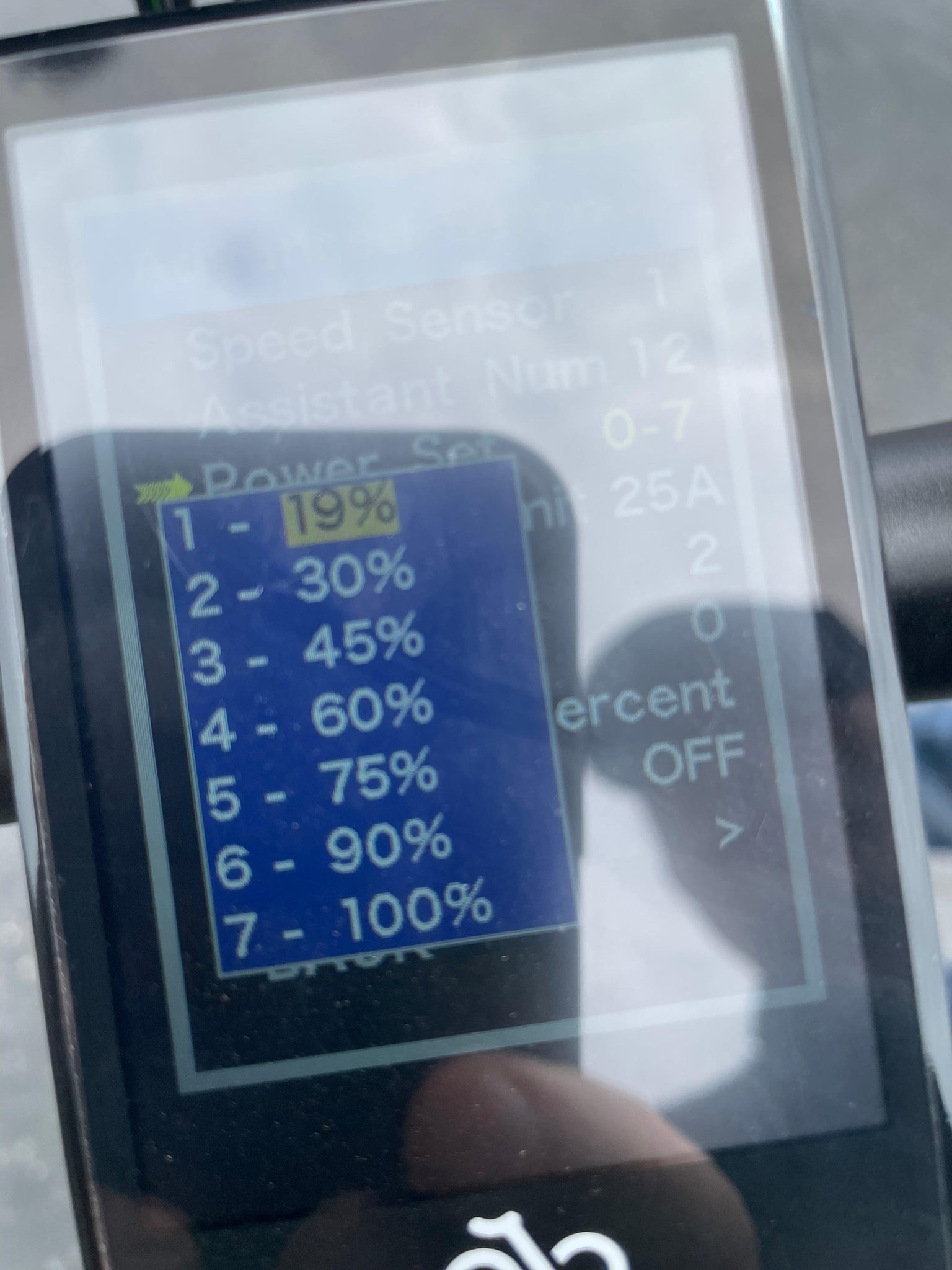

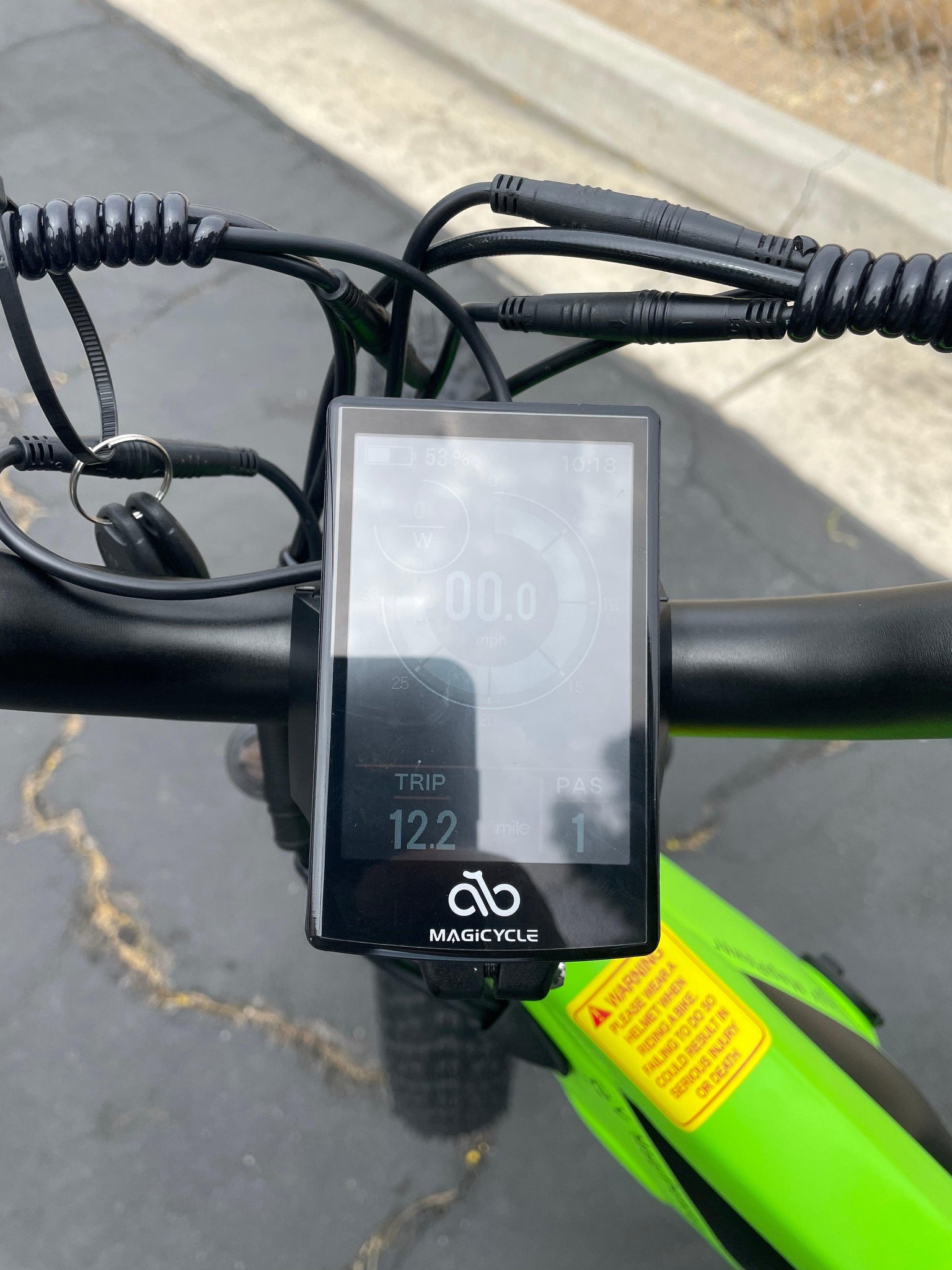

Programmable Colored LCD Display

Hydraulic Disc Brakes

Large Load Capacity

750W Electric Bike Motor
- Battery 52V 20Ah LG lithium battery
- Charger Short-circuit proof 3.0A fast smart charger.
- Range 60-80 miles
- Controller 52V 750W FOC smart controller, Current Range 7-22Ah (IPX8)

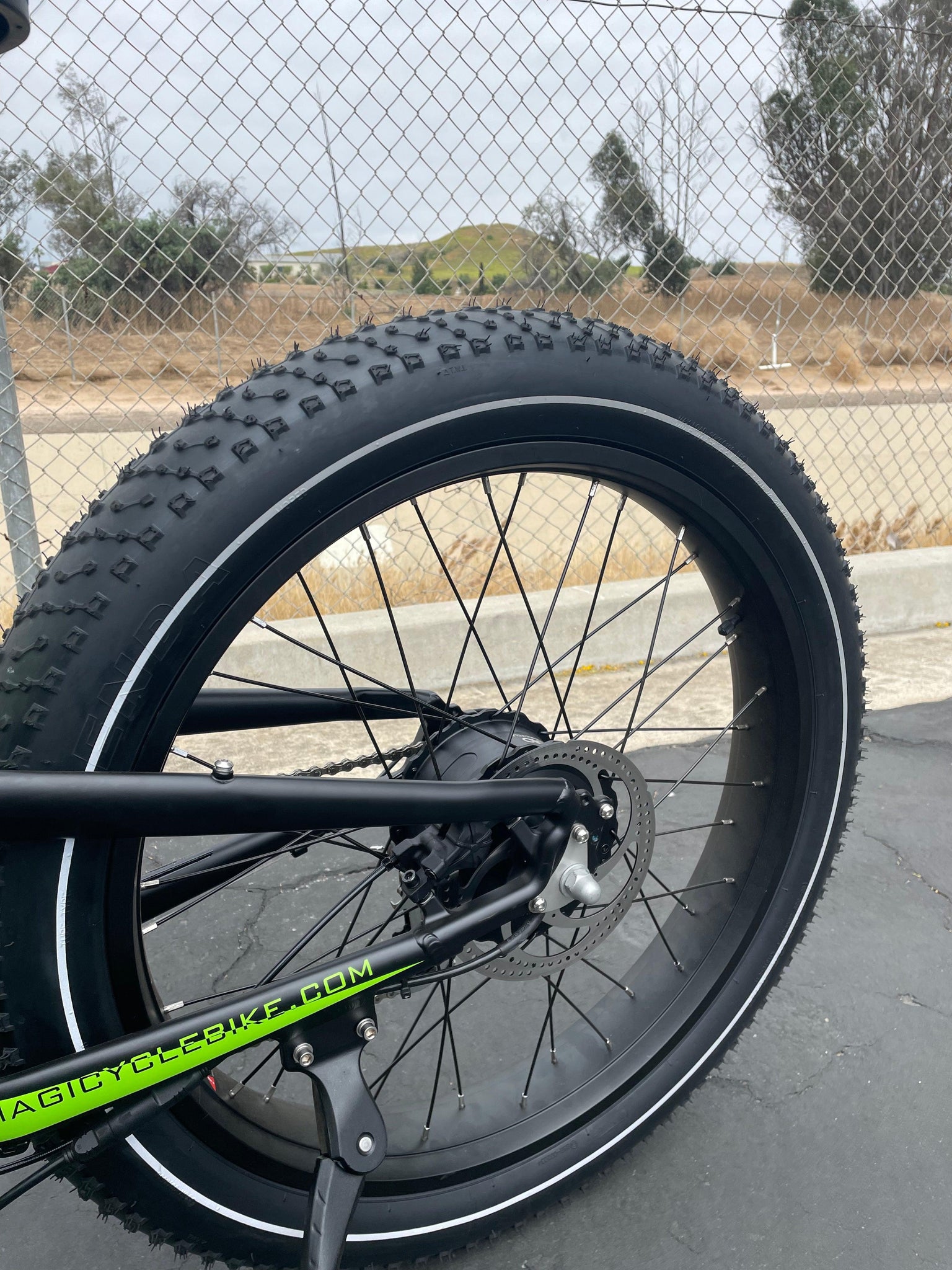

- Hub Motor 750W brushless gear motor(IP55)
- Recommended Rider Heights 5'5" - 6'8"
- Display Color LCD Display with USB Charging
- Charging Time 4 - 7Hours
- Total Payload Capacity 400lbs
- Weight 92.3lbs/41.9kg
- Frame size 18"
- Pedal Assist 7-level Intelligent pedal assist with 12-magnet cadence sensor
- Tires Kenda 26"x4.0" Fat Tires

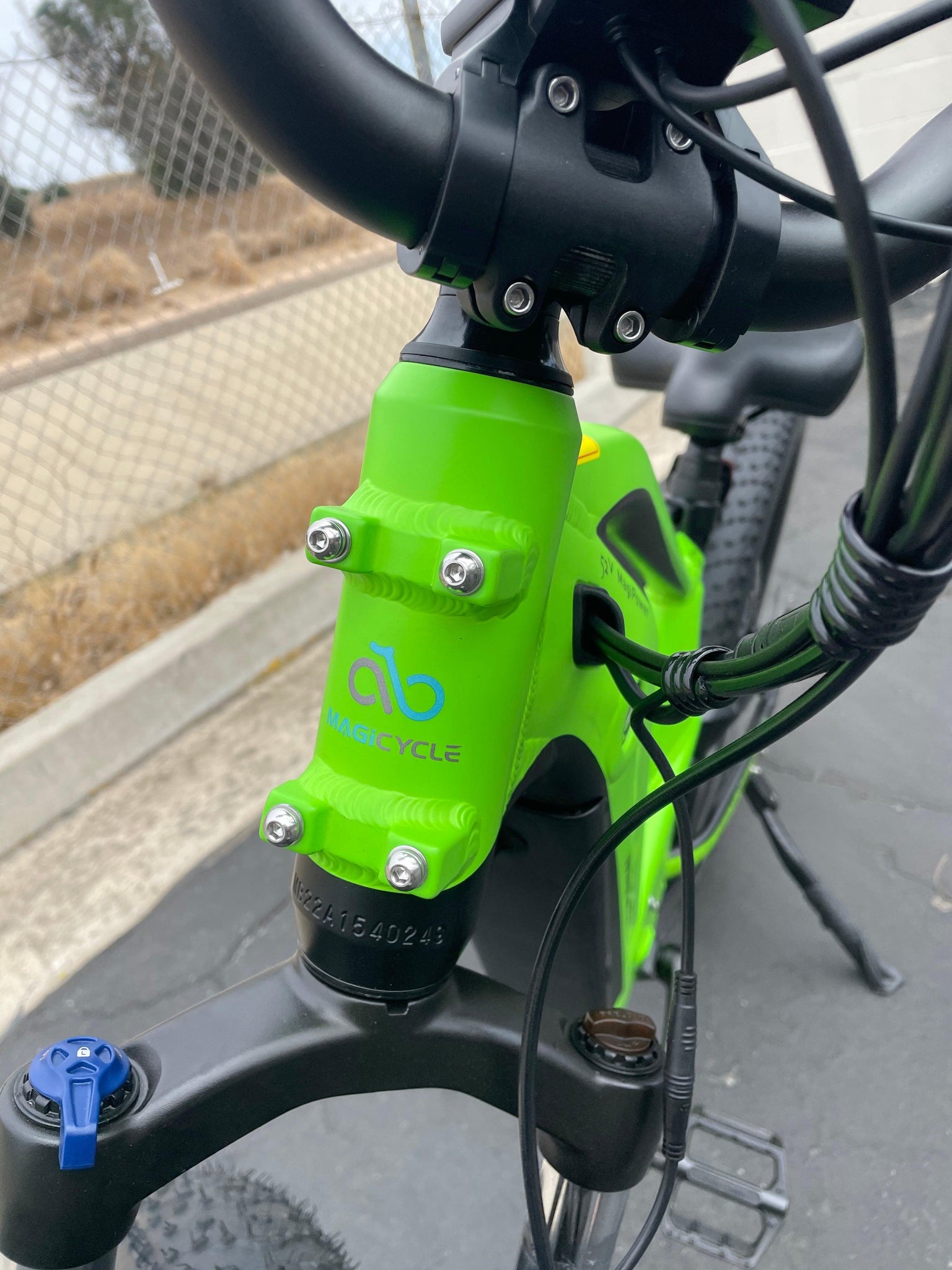

- Front Fork Alloy Hydraulic lockout suspension fork
- Brake Lever Aluminum alloy comfort grip levers with motor cutoff switch
- Throttle Half twist throttle
- Lights Integrated front and brake lights
- Pedal Wellgo alloy pedal with reflectors
- Freewheel Shimano-14-28T BROWN/BK
- Bike Frame 18" 6061 Aluminum Frame

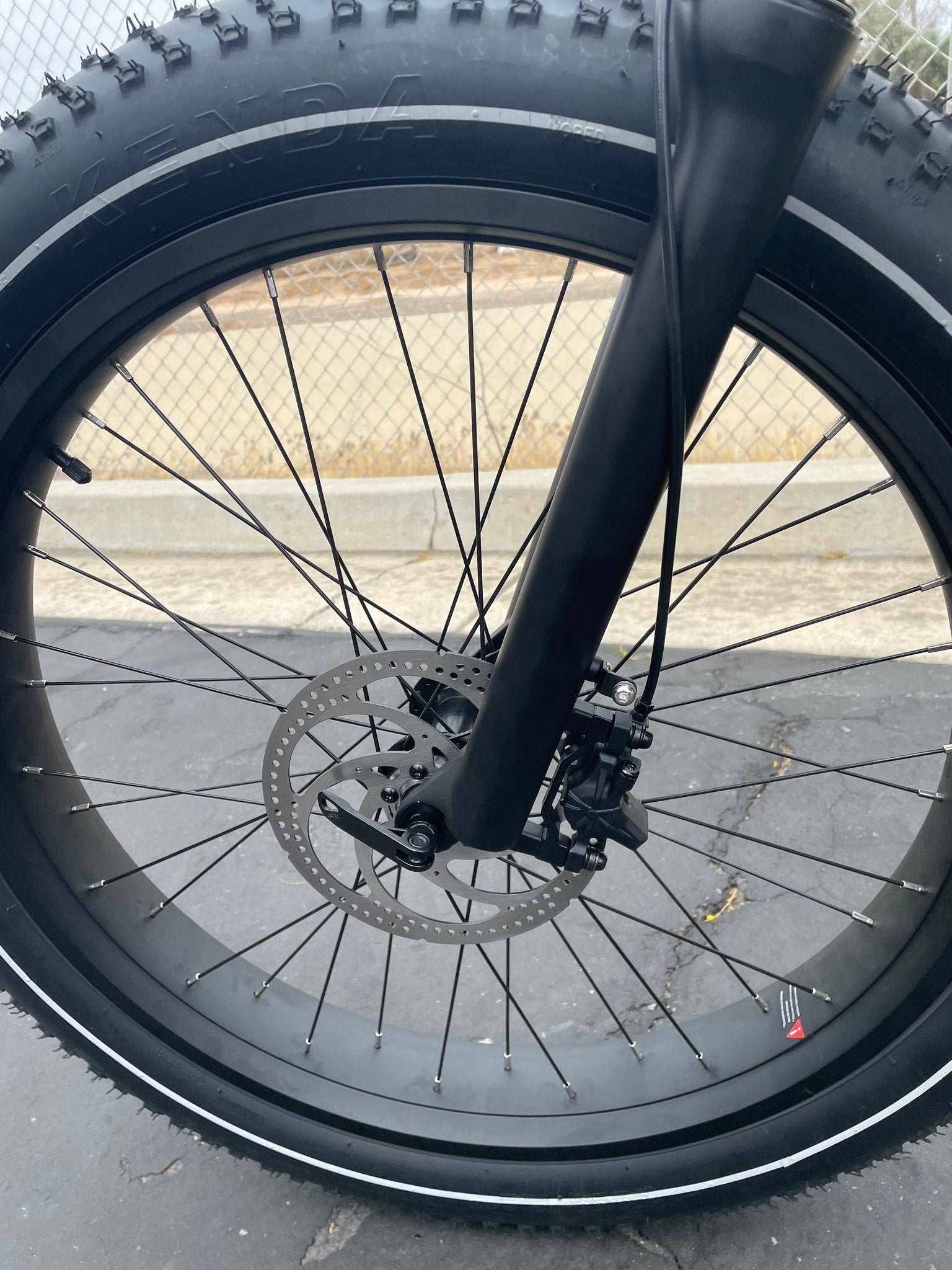

- Brake 180mm Hydraulic Disc Brakes
- Front Light 6V LED light
- Chain KMC chain
- Saddle Super Soft Cushion
- Stem MA-400 SSABK
- Seat Post Diameter 33.9mm length 250mm
- Crank 48T,170mm forged alloy,dual-sided bashguard
- Kickstand Heavy duty aluminum
- Gearing Shimano 7 speed gear shift system
- Spokes 13 Gauge on the front / 12 Gauge on the back

- A -- Total Length 78.74"
- B -- Handlebar Height 45.28"
- C -- Wheelbase 48.43"
- D -- Chain Stay Length 27.56"
- E -- Wheel Diameter 27.95"
- F -- Head Tube Length 11.81"
- G -- Handlebar Length 27.56"
- H -- Maximum Seat to Ground Height 38.58"
- I -- Minimum Seat to Ground Height 33.86"
- J -- Maximum Seat to Pedal Length 33.46"
- K -- Minimum Seat to Pedal Length 28.35"
- L -- Standover Height 32.68"
