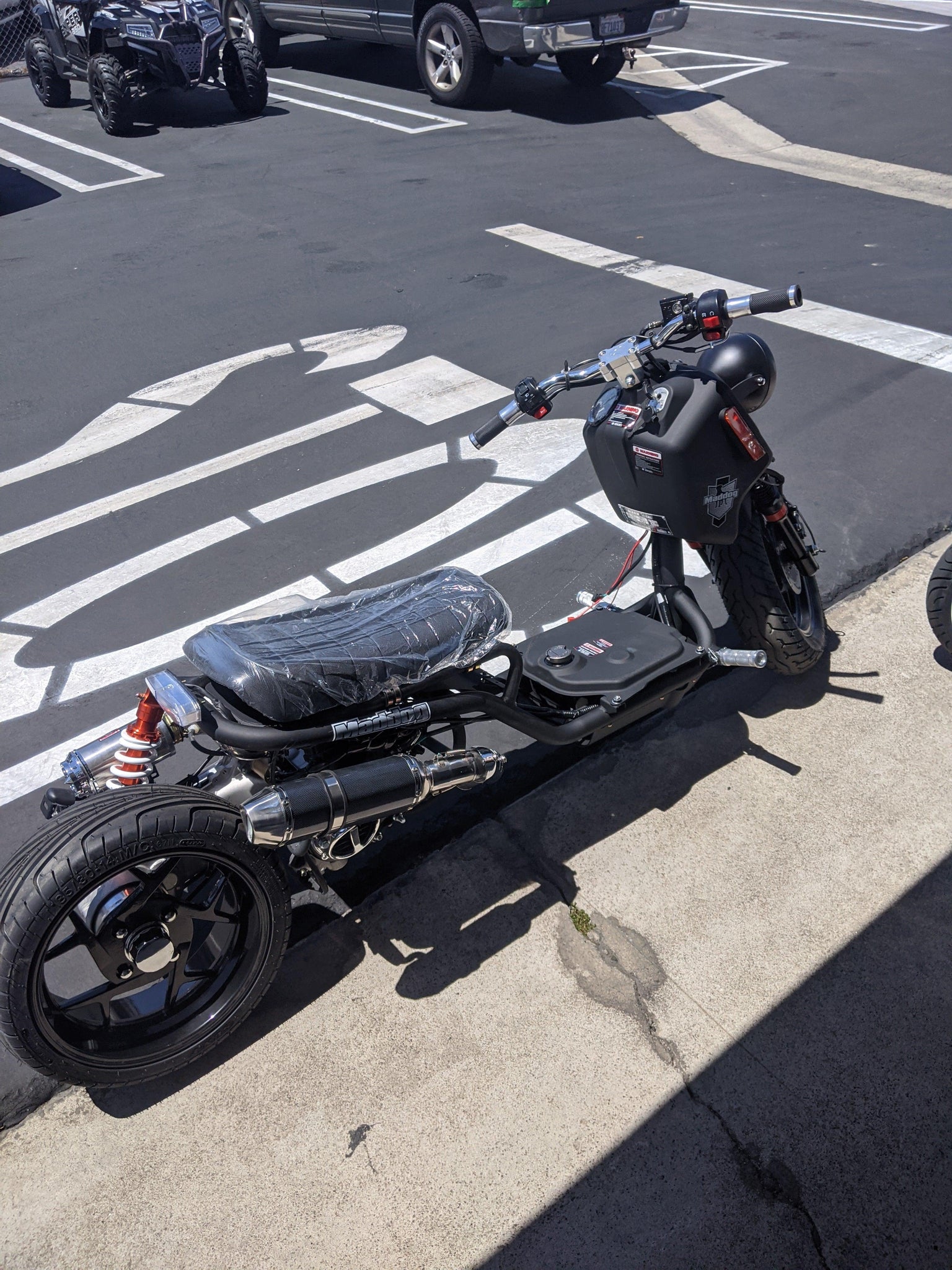

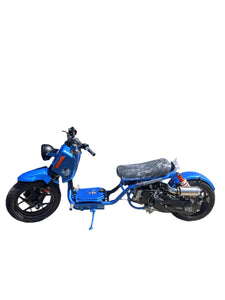

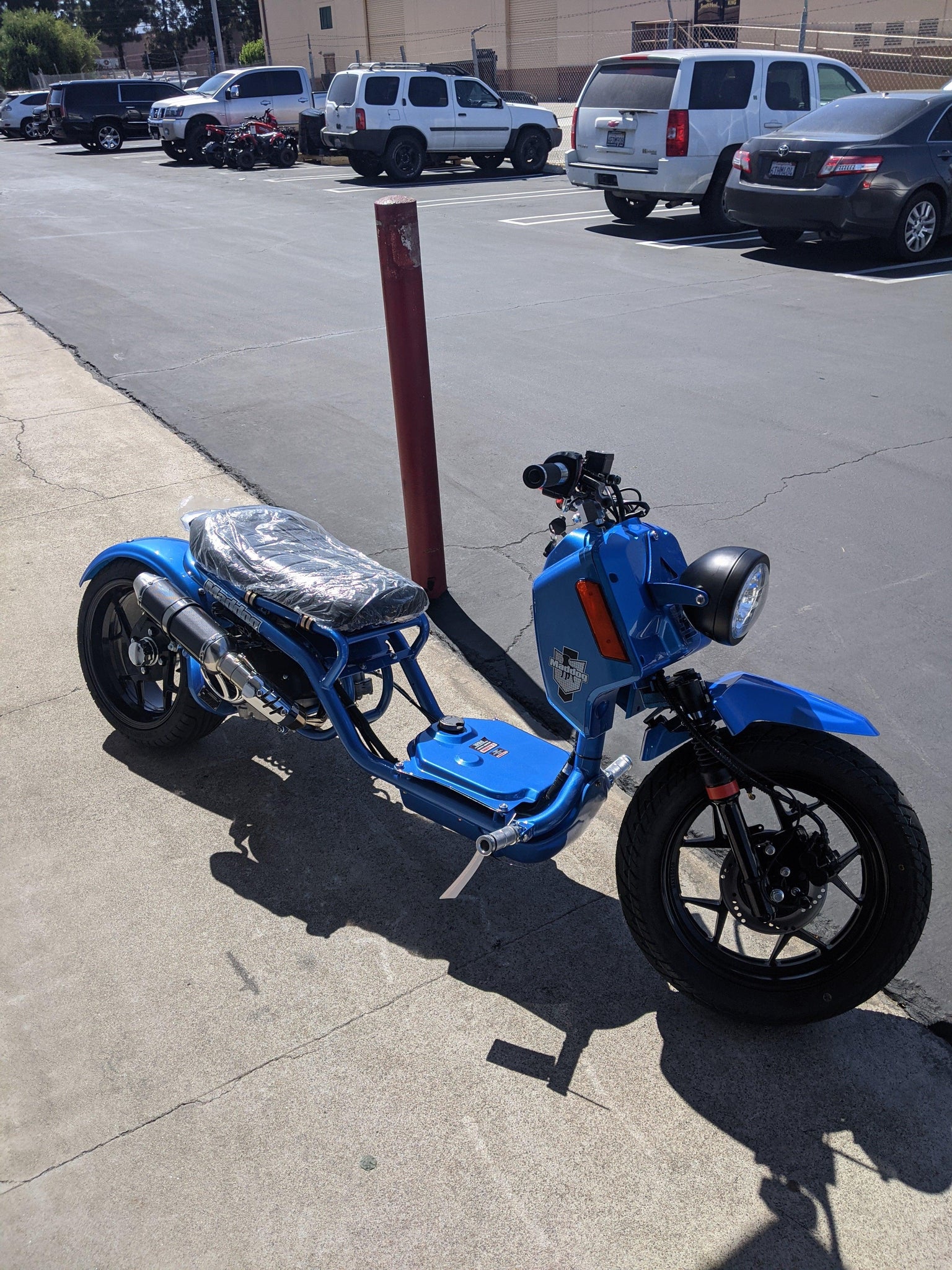

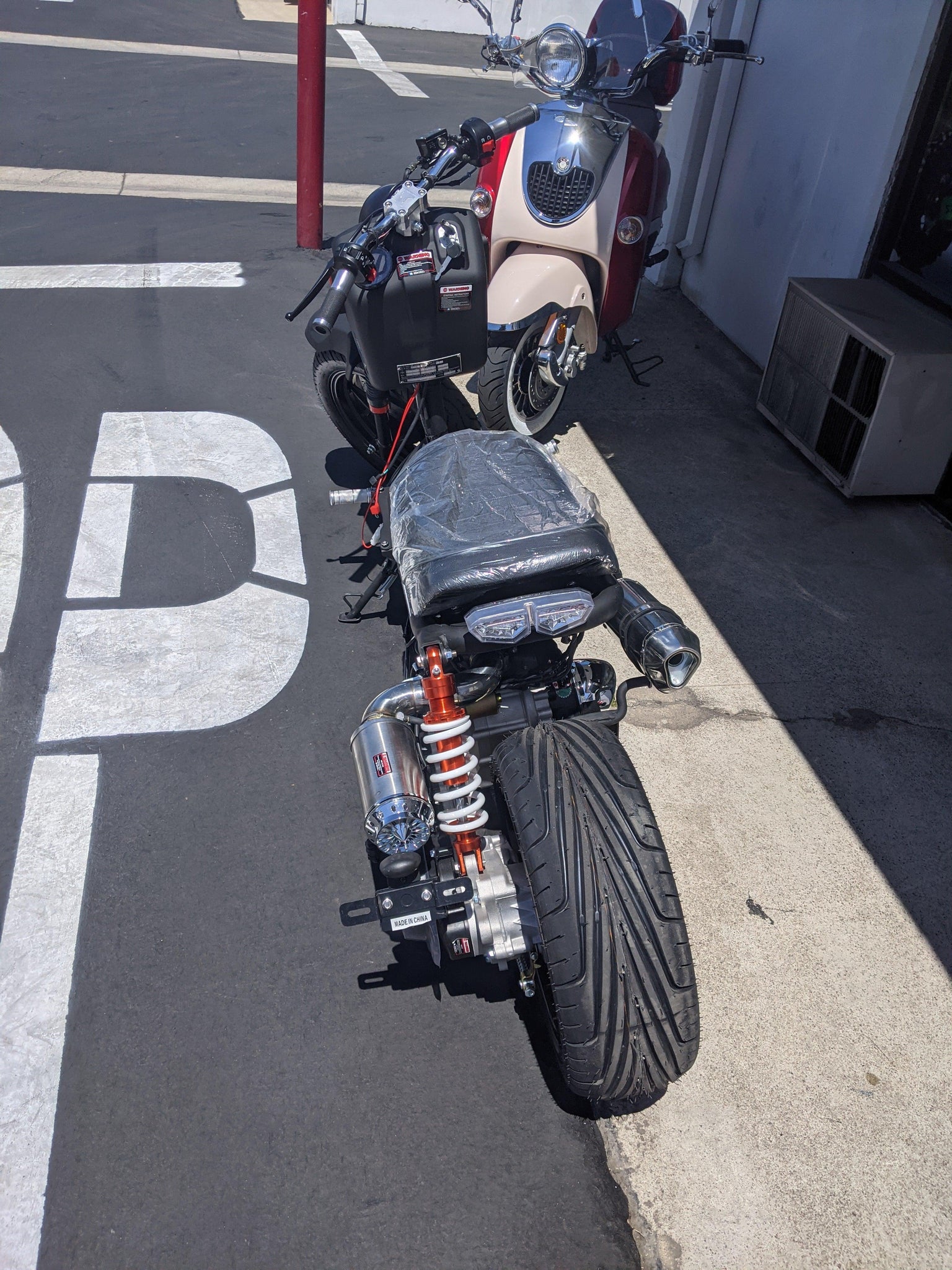

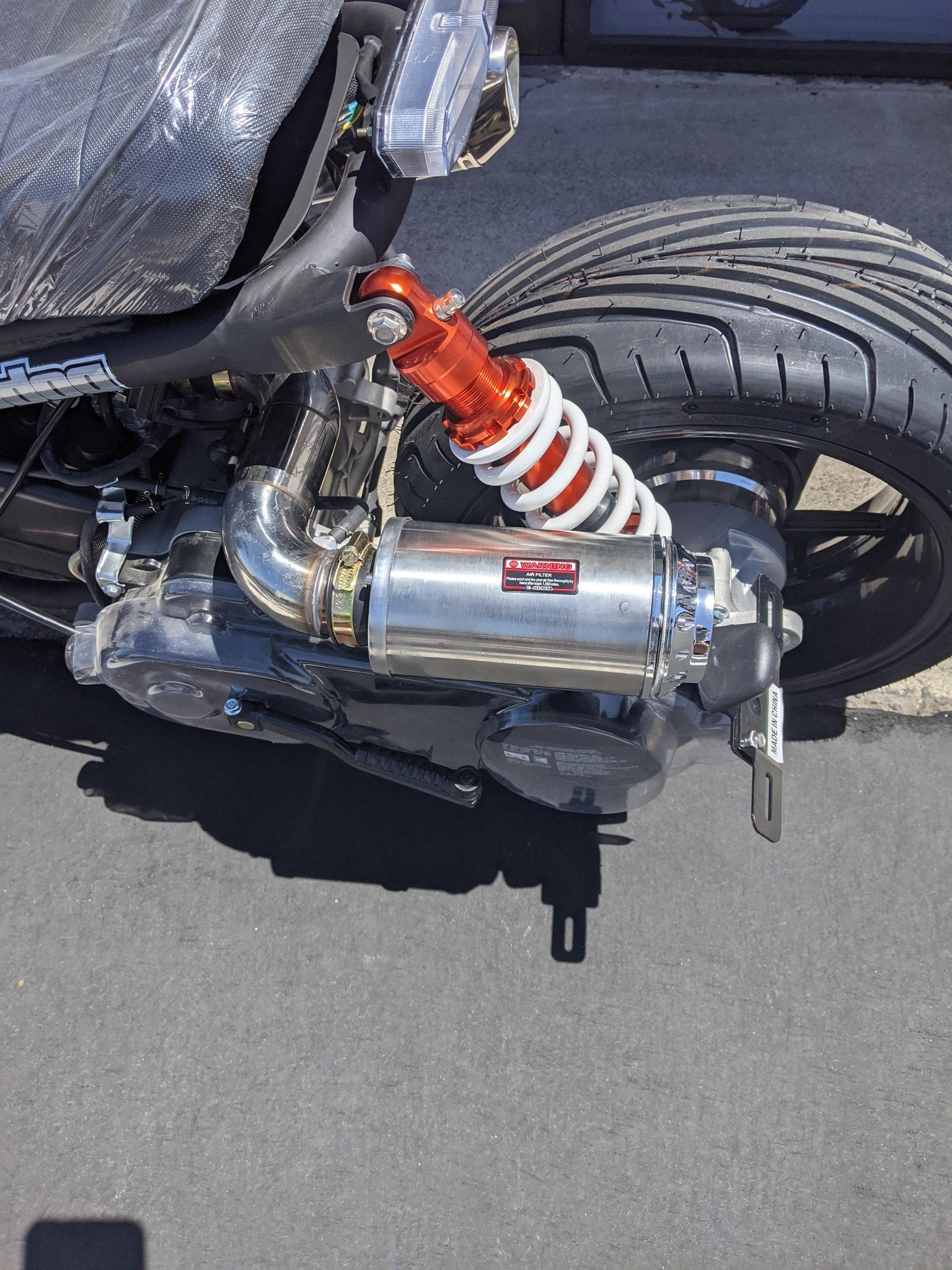

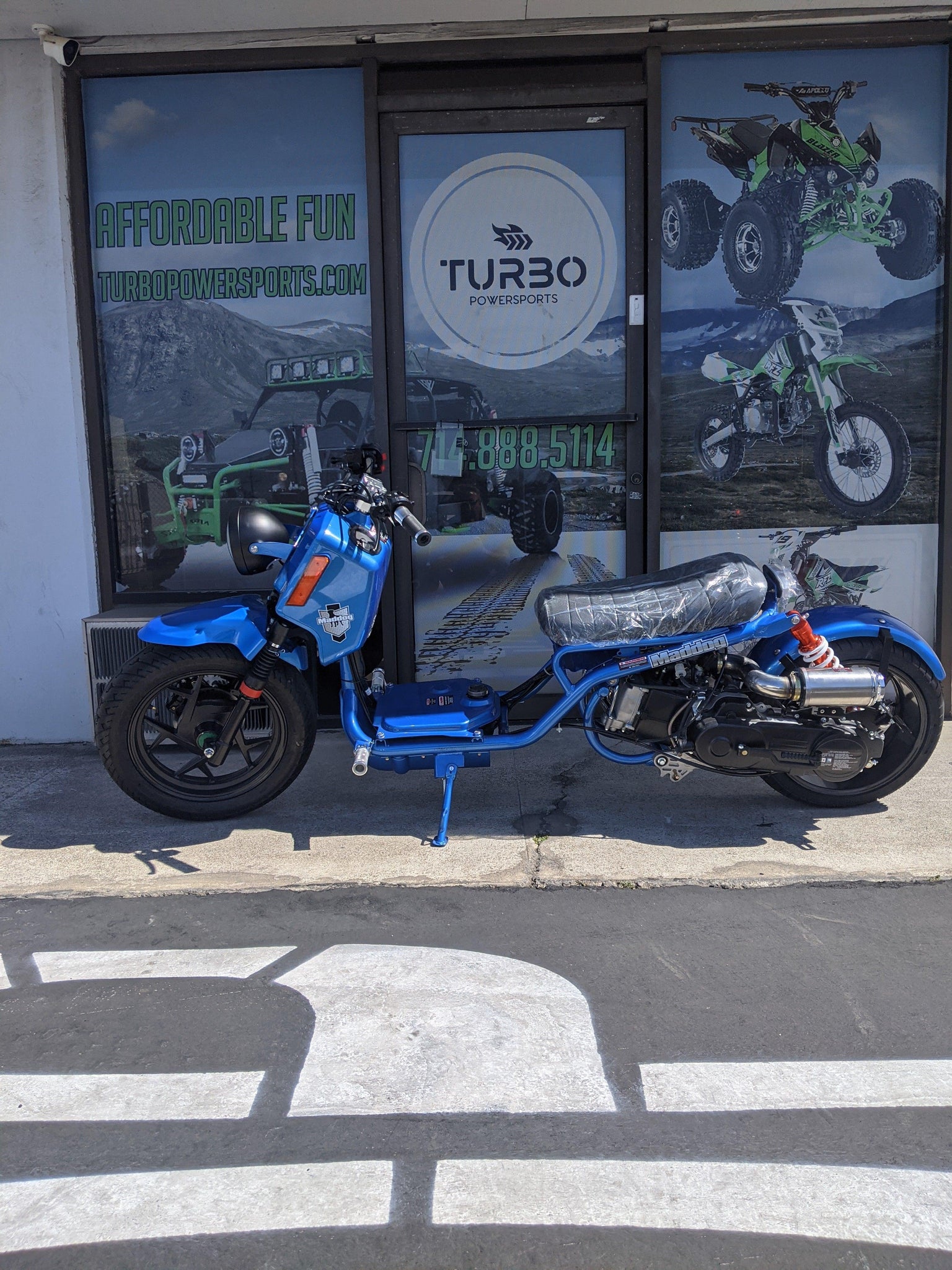

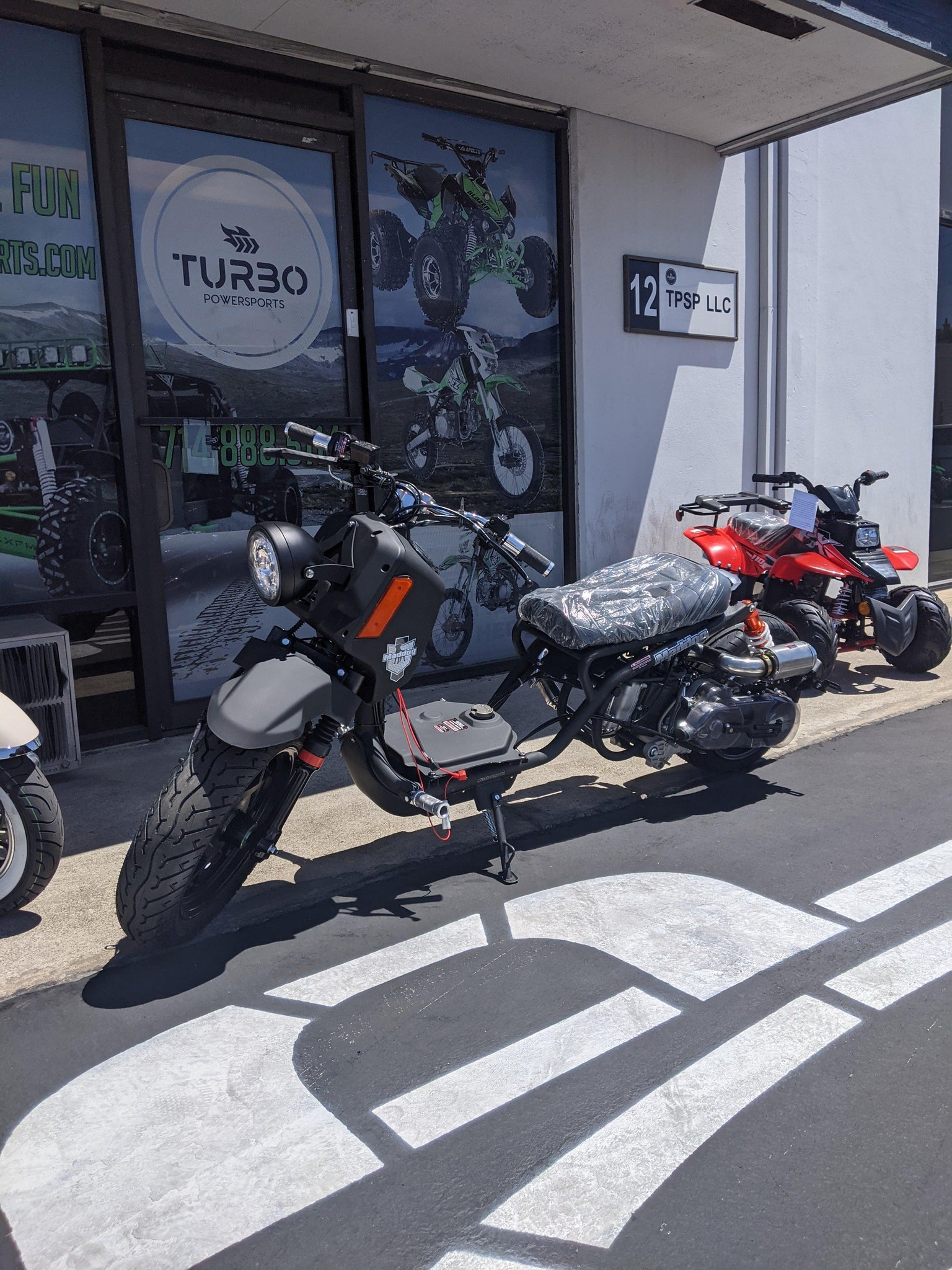

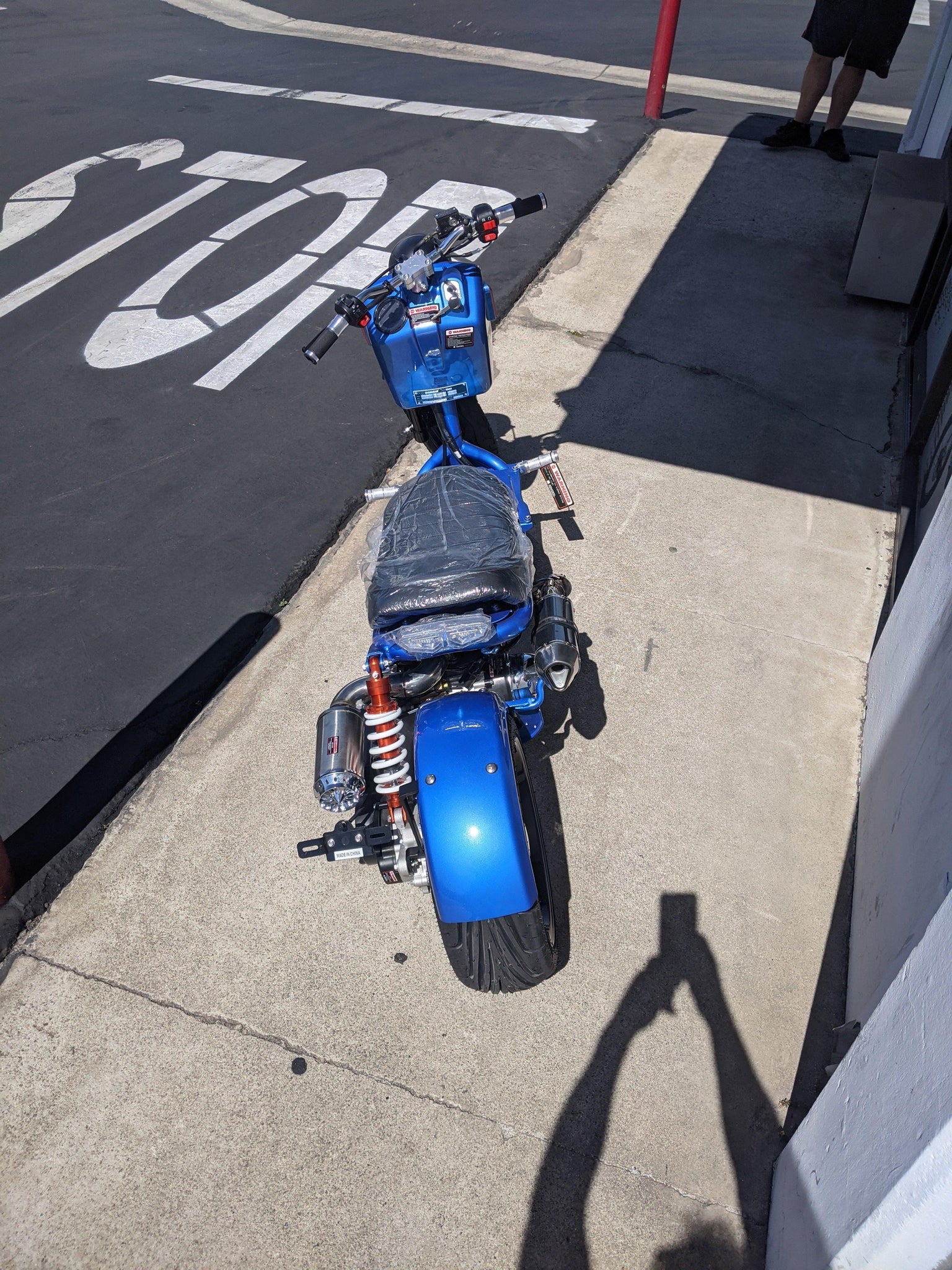

GEN IV MADDOG PMZ50-21 50cc SCOOTER

ICEBEAR

  • $2,099.99


ICEBEAR PMZ50-21 GEN IV MADDOG 50cc SCOOTER 49.5cc, Generation IV Maddog, FR Disc/RR DrumBrake, Aluminum FR 12"/RR 12", LED lights, Digital Speedometer


Product Details

Engine 50cc, 139QMB, XinBa
Transmission Automatic 35-40 MPH
Drive type Belt
Belt and or chain size Belt:788*18*28
Starter System Elec/kick start
Fuel system Gasoline, 1.2gal, carbureted
Brake (Front/Rear) Disc/Drum
Tire size(Front/Rear) 120/70-12 ; 140/70-12
Wheel size and type(Front/Rear) 12, Alunimum
Oil capacity and type (in liters) 0.8L, 10w40 aircooled engine oil (non-synthetic)
Gear oil type and capacity( in liters) GL-3, 0.25L
Battery 12V/7A
Light Led lights
Suspension(Front/Rear) Dual Telescopic Forks / Single shock
Dimensions(in inch) Assembled(LxWxH): 79.5x26.4x36.6, Crated(LxWxH): 74.8x22.4x32, Seat height: 21.6, Wheelbase: 61.4
Weight(net/gross/capacity) 191.8/257.9 lbs
weight capacity 242 lbs
Ground Clearance (in inch) 4.3
Assembly Require Front wheel, front and rear fenders, handlebars, mirrors speedometer,battery
Any special features Include: digital speedometer, horn, odometer, bar end mirrors
EPA/carb approved EPA Approve, CARB Exempt
