TM EAGLE MID XRX

TRAILMASTER

  • $1,799.00

"SHOP NOW, PAY LATER" FINANCE up to $2500 at checkout, 4 intrest-free-payments with sezzle.

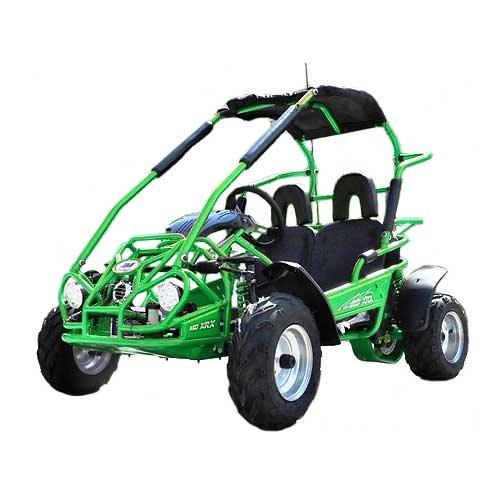

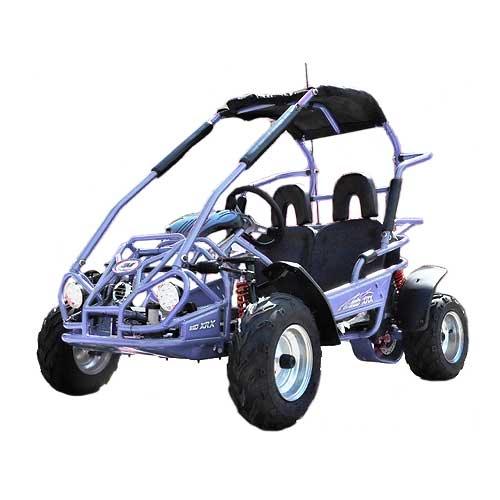

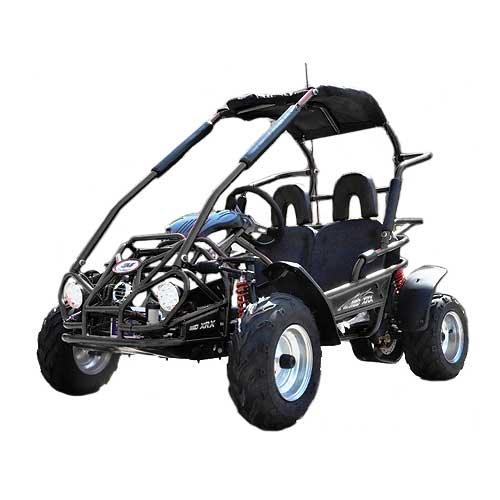

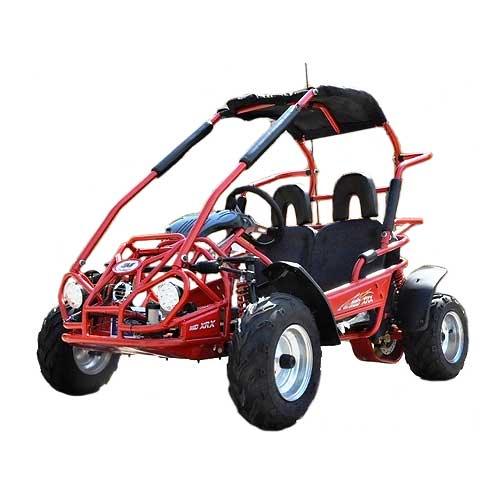

TRAILMASTER Mid-XRX Go Kart featuring a dependable overhead valve engine and a cutting-edge CVT drivetrain for awesome low-end torque! The XRX is the perfect size for intermediate riders but big enough to pack a punch with speeds up to 31 mph!

The fully integrated frame includes side rails and an enclosed belly pan for better protection on the trails, plus an upper brush guard cage complete with canopy for those long days riding in the sun. And the full front and rear coil-over double oil dampened shock suspension gives a smooth, even ride for sure-footed traction on any terrain. The XRX also features keyed ignition electric start, head and tail lights, a horn and dual sport seats with 5-point safety harnesses, rack-and-pinion steering and a fully automatic transmission for safe, simple operation. This is what fun feels like! Comes in several colors.

PRODUCT INFORMATION

Engine Information

EPA certificated
Engine type: 4-stroke, single cylinder, air cooled
Displacement:

200cc

Max HP:

6.3hp/3600rpm

Max torque:

9.6 lb ft/2500rpm

Bore x stroke:

2.6 x 2.1 inches

Max speed:

31mph

Climbing ability:

12 degrees

Ignition:

C.D.I

Starting system:

Electric / Pull backup

Battery:

12V 9Ah

Carburetor brand:

JF (RX)

Engine oil:

SG15W-40
General Information

Clutch:

Automatic CTV

Driveline / Driving wheel:

Chain / Dual wheel drive

Suspension, F / R:

Double A-arm / swing-arm(Double Oil Damped Shock)

Brakes, F / R:

No / Hydraulic brake, Disc

Tires, F / R:

16x6-8 / 16x7-8

Fuel capacity:

1 gal

Weight, G.W. / N.W.:

386 /330 lbs

Max load:

400 lbs

Dimension Information

Wheelbase:

48.4 inches

OA L x W x H:

67x43.3x51.2 inches

Height to seat:

10.2 inches

Min ground clearance:

2.8 inches
Pedal to seat back distance: 31.5'' to 37''

Shipping information:

54 units/40HQ
Configurations And Specifications Subject To Change Without Notice.
