TM EAGLE MINI XRX-R+ PLUS

TRAILMASTER

  • $1,499.00

"SHOP NOW, PAY LATER" FINANCE up to $2500 at checkout, 4 intrest-free-payments with sezzle.

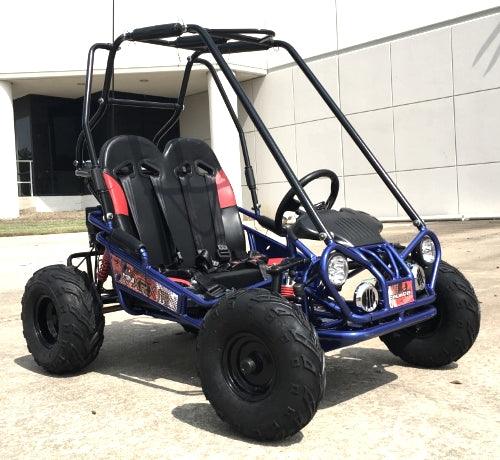

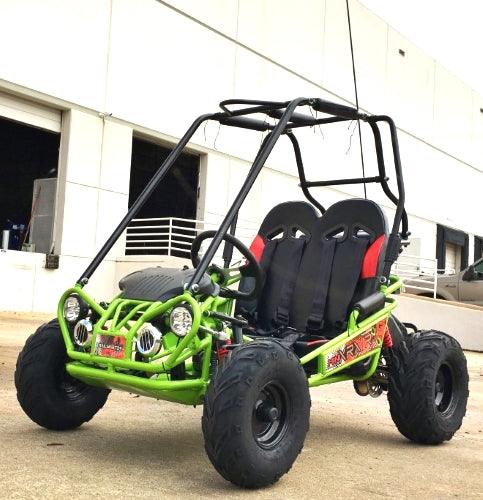

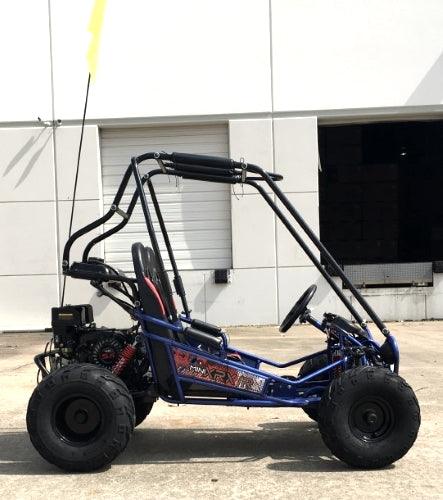

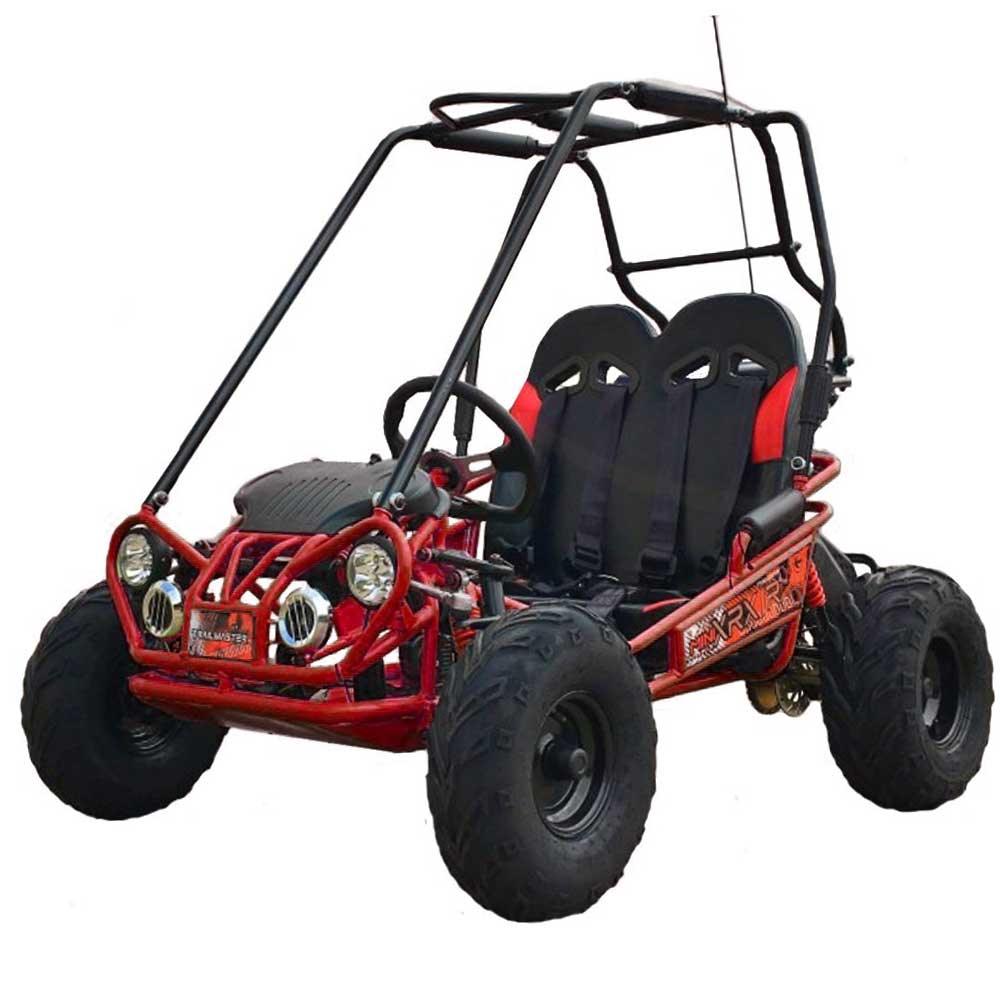

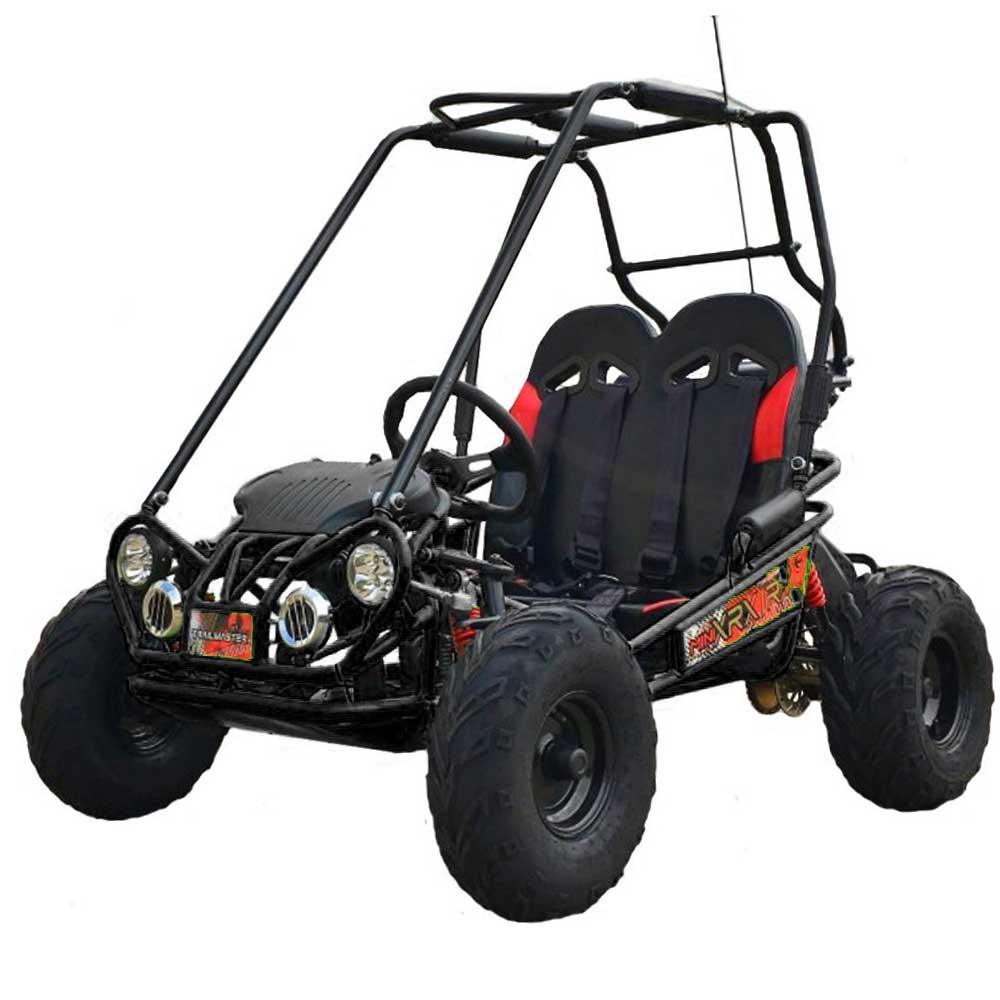

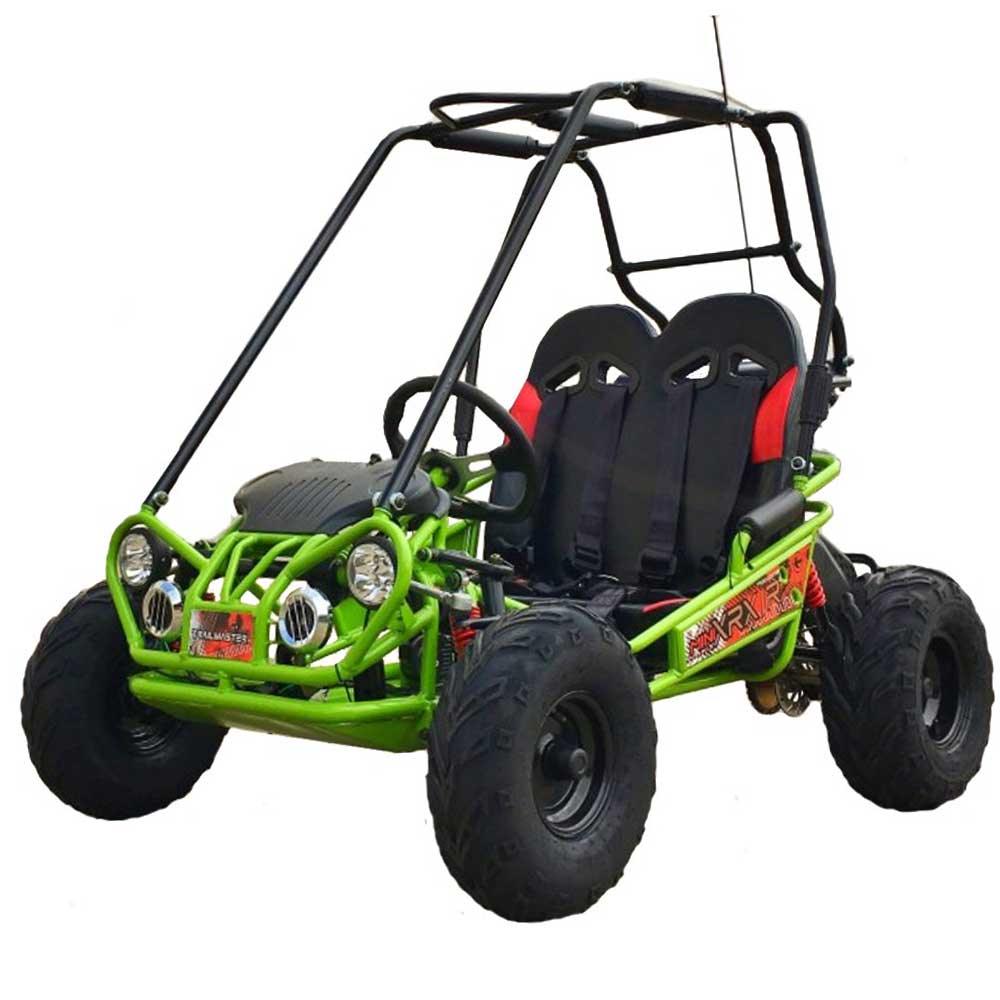

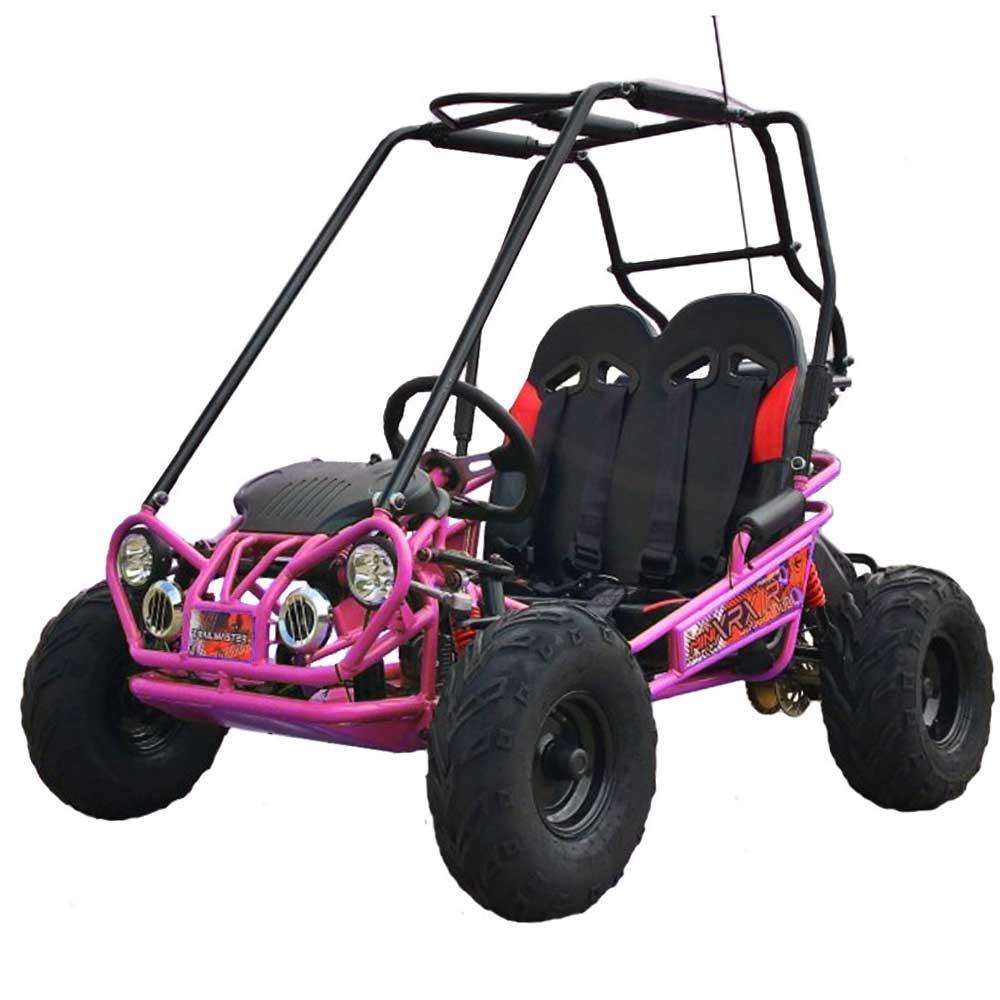

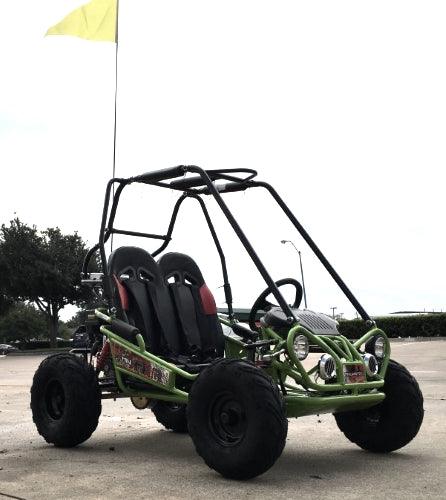

TRAILMASTER has upgraded their popular Mini XRX/R kids gokart with the bigger Mini XRX/R+. The Plus model includes all the same features as the original XRX, but also boasts a wider frame, wider seat, extra legroom and taller frame, along with bigger front and rear tires! You get the proven 4-stroke, single cylinder engine matched to an automatic transmission with reverse turning a solid rear live axle for excellent traction on any terrain. This buggy also features LED headlights, an adjustable sports seat, adjustable pedals, 5-point seat harnesses, a horn and more. A speed governor and remote control on/off keep parents in complete control. Comes in several colors.

Specifications

  • Model: Mini XRX/R+
  • Engine: 4-stroke, single cylinder, air cooled
  • Displacement: 163cc
  • Max horsepower: 5.5 hp/3600 rpm
  • Max torque: 8 lb ft/3600 rpm
  • Bore x stroke: 2.6 x 1.8 inches
  • Max speed: 32 mph (governed for 12.4 mph)
  • Climbing ability: 12 degrees
  • Ignition: C.D.I
  • Starting system: Electric Start with Pull Start Backup
  • Remote Start/Kill
  • Battery: 12V 9Ah
  • Carburetor brand: JF (RX)
  • Engine oil: SAE 15W-40
  • Clutch: Automatic w/Reverse
  • Driveline / Driving wheel: Chain / Dual wheel drive, Live axle
  • Suspension, F / R: Dual A-arm / Double Oil Damped Shock
  • Brakes: Disc
  • Tires, F / R: 14.5x70-6 / 16x8-7
  • Fuel capacity: 1.2 gal
  • Gross Weight: 280 lbs
  • Net Weight: 232 lbs
  • Max load: 300 lbs
  • Wheelbase: 42.6 inches
  • Shipping Dimensions (LxWxH): 58.7x38.2x48.8 inches
  • Height to seat: 13.6 inches
  • Min ground clearance: 4.02 inches

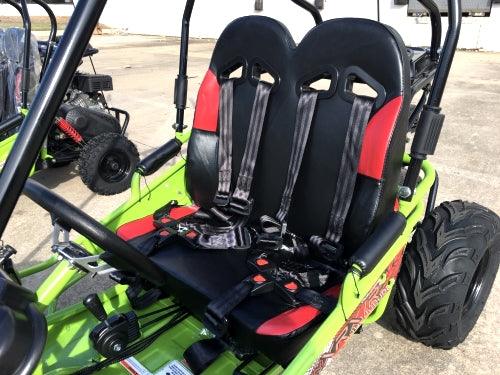

  • Adjustable Sports Seat
  • Pedal to seat back: 30 to 35 inches

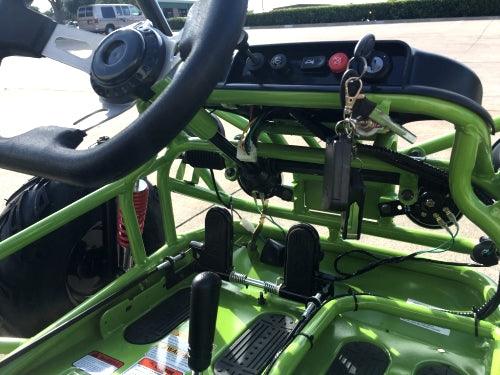

  • Adjustable Pedals: from 3 or 6 inches shorter

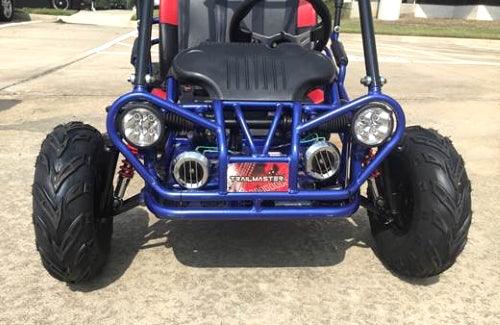

  • LED Headlights
  • Five Point Safety Seatbelt
  • Speed Governor
  • Horn
  • Recommended Age: 4 to 12 yrs.
  • Configurations And Specifications Subject To Change Without Notice
